THE REFRIGERATION HOUSE

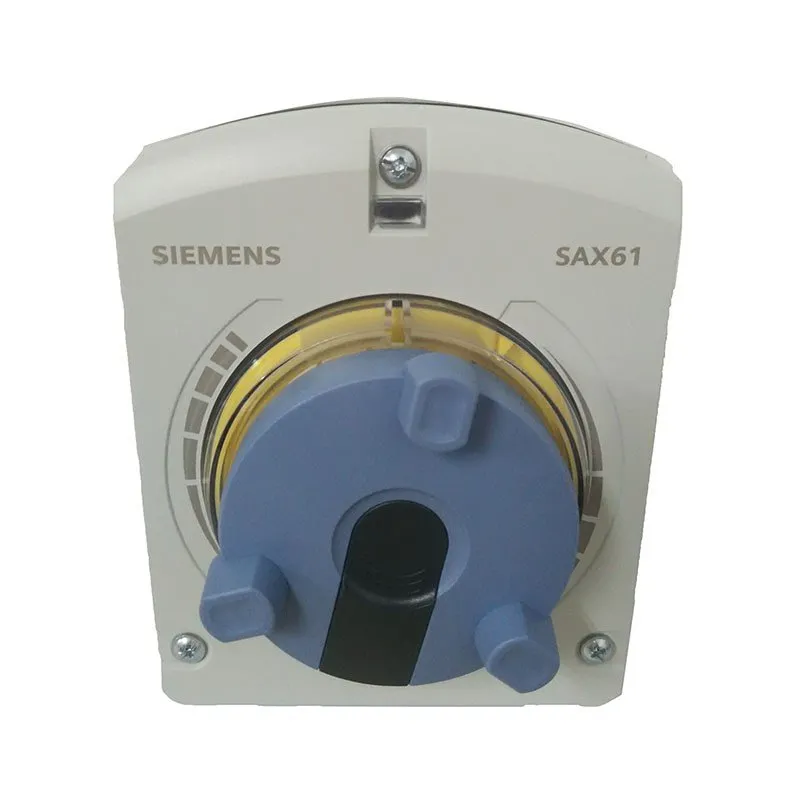

Siemens SAX61 Valve Actuator
The SAX Non-spring Return (NSR), Electronic Valve Actuator requires a 24 Vac supply
and receives a 0 to 10 Vdc or a 4 to 20 mA control signal to proportionally control a
valve. This actuator is designed to work with Flowrite 599 Series 2-way and 3-way valves
or Siemens flanged, Pressure Independent Control Valves with a 3/4-inch (20 mm)
stroke.
Features:
24Vac/Vdc operating voltage
Direct-coupled installation requires no special tools or adjustments
Visual and electronic stroke indication
Manual override
Automatic stroke calibration
LED status indication
Overload and stall protection.
Optional functions with auxiliary switches, function module, and stem heater
Maintenance-free
Application:
These electronic actuators are designed to be used with Flowrite 599 Series valves with
3/4-inch (20 mm) stroke in hot and chilled water, and low pressure (<15 psi) steam
service applications, or with Siemens flanged, Pressure Independent Control valves with
3/4-inch (20 mm) stroke in hot and chilled water applications in closed loop HVAC
systems.
