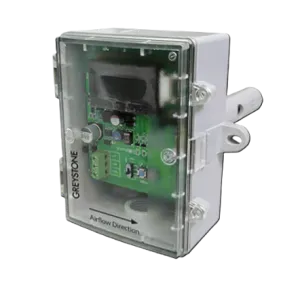

The HSOSA312 from Greystone Energy Systems is an outside air humidity transmitter designed to monitor relative humidity (and optionally temperature) in HVAC, environmental, and building automation applications.
🌦️ Key Features
Measures relative humidity (RH) from 0 % to 100 % with a typical accuracy of ±3 % RH.
Built-in 1 kΩ Platinum RTD for temperature measurement (often combined with humidity output).
Jumper-selectable outputs for easy integration:
4–20 mA current loop
0–5 VDC
0–10 VDC
0–1 VDC
(output type selected via internal jumpers)
ABS enclosure with hinged and gasketed cover protects electronics in outdoor environments.
Fast response time: ~15 seconds typical.
Wide power range: Operates on 15–26 VAC or 18–30 VDC, making it compatible with standard HVAC control power.
