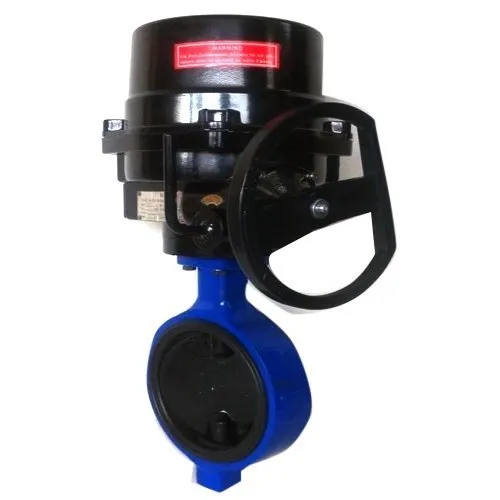

The Actuated Wafer Type Motorized Butterfly Valves are suitable for heating and cooling applications. BSBFW series is equipped with standard On-Off control quarter-turn electric actuator. It can also provide feedback output signal: Dry contact for On-Off version. Operate the valve manually to fully open or fully closed position before the actuator is mounted.
Designed to work with water and other non-aggressive liquids with temperatures from -10 to +110 ° C. The body is made of cast iron and has a wafer-type connection. Disc is made of stainless steel, the disc rotation angle is 10° to 90°, and seal is made of EPDM rubber.Features & Benefits:
Wide size range (DN 50 to DN500) for PN16 type
For On-Off Control
Manual override non-clutch design
Manual operation can be operated without any lever, clutch or brake upon power voltage
Irreversible worm gear
Visual mechanical position indicator for accurate visual reference of valve position
Anti-condensation heater and 2 aux. limit switches on standard model
Enclosure IP82
